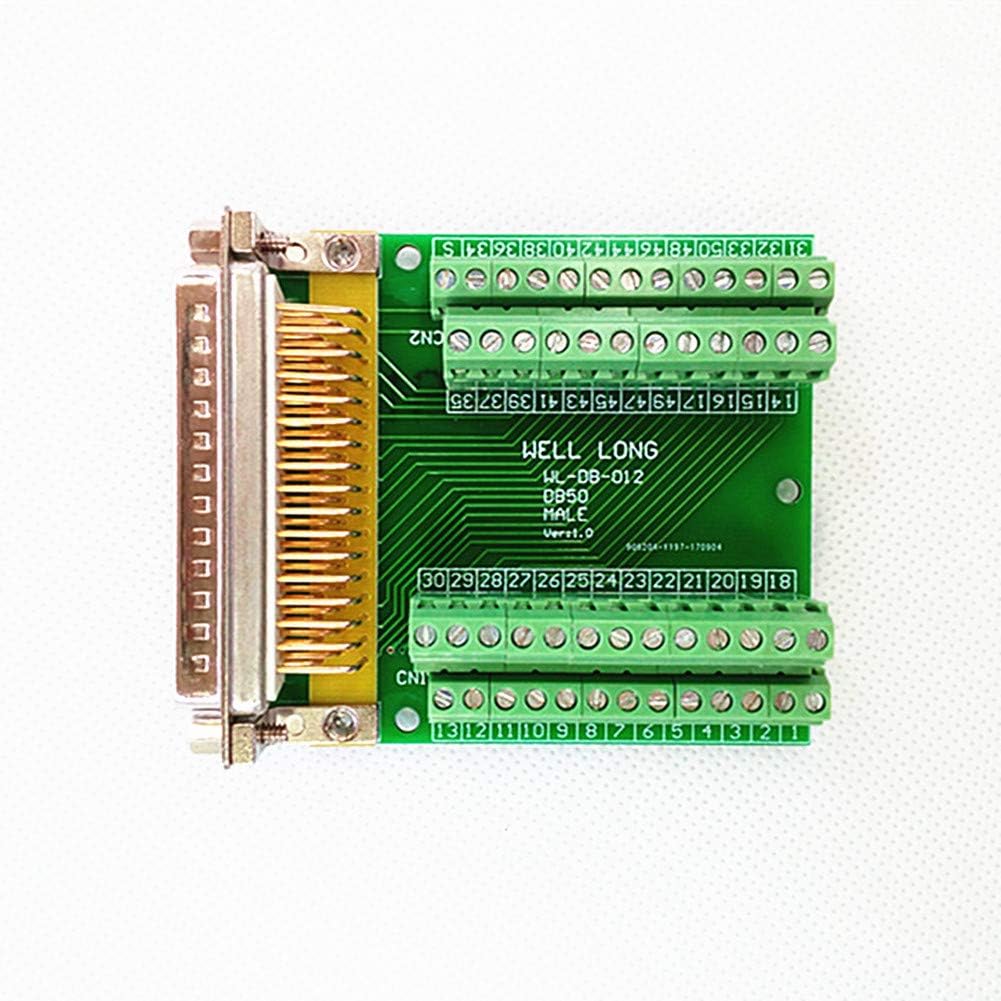

DB50 Male Breakout Board, D'SUB Header Breakout Board, Terminal Block DSUB Module.
Product details
| Management number | 218075485 | Release Date | 2026/05/03 | List Price | $9.19 | Model Number | 218075485 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DB50 Male Breakout Board, D'SUB Header Breakout Board, Terminal Block DSUB Module. Slim Right Angle D'SUB Breakout Board. FR-4 fiber glass PCB. Rated voltage: 60V, Rated current: 500mA / per pin. Operating Temperature: -20ºC to 50ºC Terminal block: Wire range 26 to 16AWG. Strip length 5mm. Screws - M2,steel,Cr3+ Zn plated. Pin header and Cage - Brass. 100% new, never used.
- FR-4 fiber glass PCB.
- Rated voltage: 60V, Rated current: 500mA / per pin.
- Operating Temperature: -20ºC to 50ºC
- Wire range 26 to 16AWG.
- Pin header and Cage - Brass.
| Gauge | 16.0 |
|---|---|
| Voltage | 60 Volts |
| Brand Name | WELL LONG |
| Manufacturer | XH |
| Material Type | Brass, glass, steel |
| Mounting Type | PCB Mount |
| Connector Type | Screw |
